Intel NUC6i5SYK add TrueNAS-Scale iSCSI shared LUN
Hint: target-name format is {Base Name}:{Target Name}
iqn.2005-10.org.freenas.ctl:iscsi-zvol
Get LUN number from “Associated Targets” menu
get iSCSI LUN information from TrueNAS-Scale:
config iSCSI in NUC6i5SYK BIOS:
iSCSI adapter and LUNs will show up in VMware ESXi:
TrueNAS-SCALE-22.12.3.2 iSCSI Share
Official documentation:
https://www.truenas.com/docs/scale/scaletutorials/shares/iscsi/addingiscsishares/
SUSE Rancher Kubernetes Engine RKE2 Server nodes manually upgrade from version v1.25.10+rke2r1 to version v1.25.11+rke2r1 Using the Installation Script
https://docs.rke2.io/upgrade/manual_upgrade
command:
rke2 --version
curl -sfL https://get.rke2.io | sudo sh -
sudo systemctl restart rke2-server
rke2 --version
Command console output:
root@dell-wyse-5070-gbz02g3:~$ rke2 –version
rke2 version v1.25.10+rke2r1 (e0c376c606754f1ae6a1c2401f4f6e9146bda0f3)
go version go1.19.9 X:boringcrypto
root@dell-wyse-5070-gbz02g3:~$ curl -sfL https://get.rke2.io | sudo sh –
[INFO] finding release for channel stable
[INFO] using v1.25.11+rke2r1 as release
[INFO] downloading checksums at https://github.com/rancher/rke2/releases/download/v1.25.11+rke2r1/sha256sum-amd64.txt
[INFO] downloading tarball at https://github.com/rancher/rke2/releases/download/v1.25.11+rke2r1/rke2.linux-amd64.tar.gz
[INFO] verifying tarball
[INFO] unpacking tarball file to /usr/local
root@dell-wyse-5070-gbz02g3:~$ sudo systemctl restart rke2-server
root@dell-wyse-5070-gbz02g3:~$ rke2 –version
rke2 version v1.25.11+rke2r1 (32743355da1b2628a4a880ce150f05fe8647aaf9)
go version go1.19.10 X:boringcrypto
root@dell-wyse-5070-gbz02g3:~$ whereis rke2
rke2: /usr/local/bin/rke2
root@dell-wyse-5070-gbz02g3:~$ ls -la /usr/local/bin/
total 154376
drwxr-xr-x 2 root root 4096 Jun 27 18:39 .
drwxr-xr-x 10 root root 4096 Jul 4 02:54 ..
-rwxr-xr-x 1 root root 21563 Dec 12 2022 containerd-rootless-setuptool.sh
-rwxr-xr-x 1 root root 7032 Dec 12 2022 containerd-rootless.sh
-rwxr-xr-x 1 root root 45125632 Nov 19 2022 helm
-rwxr-xr-x 1 root root 28536832 Dec 12 2022 nerdctl
-rwxr-xr-x 1 root root 84362192 Jun 27 18:39 rke2
-rwxr-xr-x 1 root root 2892 Jun 27 18:22 rke2-killall.sh
-rwxr-xr-x 1 root root 4088 Jun 27 18:22 rke2-uninstall.sh
root@dell-wyse-5070-gbz02g3:~$ whereis crictl
crictl: /var/lib/rancher/rke2/data/v1.25.11-rke2r1-5ec8deb7122b/bin/crictl
root@dell-wyse-5070-gbz02g3:~$ ls -la /var/lib/rancher/rke2/data/v1.25.11-rke2r1-5ec8deb7122b/bin/crictl
-rwxr-xr-x 1 root root 38483024 Jul 4 02:56 /var/lib/rancher/rke2/data/v1.25.11-rke2r1-5ec8deb7122b/bin/crictl
root@dell-wyse-5070-gbz02g3:~$ ls -la /var/lib/rancher/rke2/data/v1.25.11-rke2r1-5ec8deb7122b/bin/
total 320952
drwxr-xr-x 2 root root 4096 Jul 4 02:56 .
drwxr-xr-x 4 root root 4096 Jul 4 02:56 ..
-rwxr-xr-x 1 root root 59563056 Jul 4 02:56 containerd
-rwxr-xr-x 1 root root 8527032 Jul 4 02:56 containerd-shim
-rwxr-xr-x 1 root root 10217176 Jul 4 02:56 containerd-shim-runc-v1
-rwxr-xr-x 1 root root 14011856 Jul 4 02:56 containerd-shim-runc-v2
-rwxr-xr-x 1 root root 38483024 Jul 4 02:56 crictl
-rwxr-xr-x 1 root root 20968336 Jul 4 02:56 ctr
-rwxr-xr-x 1 root root 49232200 Jul 4 02:56 kubectl
-rwxr-xr-x 1 root root 116942168 Jul 4 02:56 kubelet
-rwxr-xr-x 1 root root 10684792 Jul 4 02:56 runc

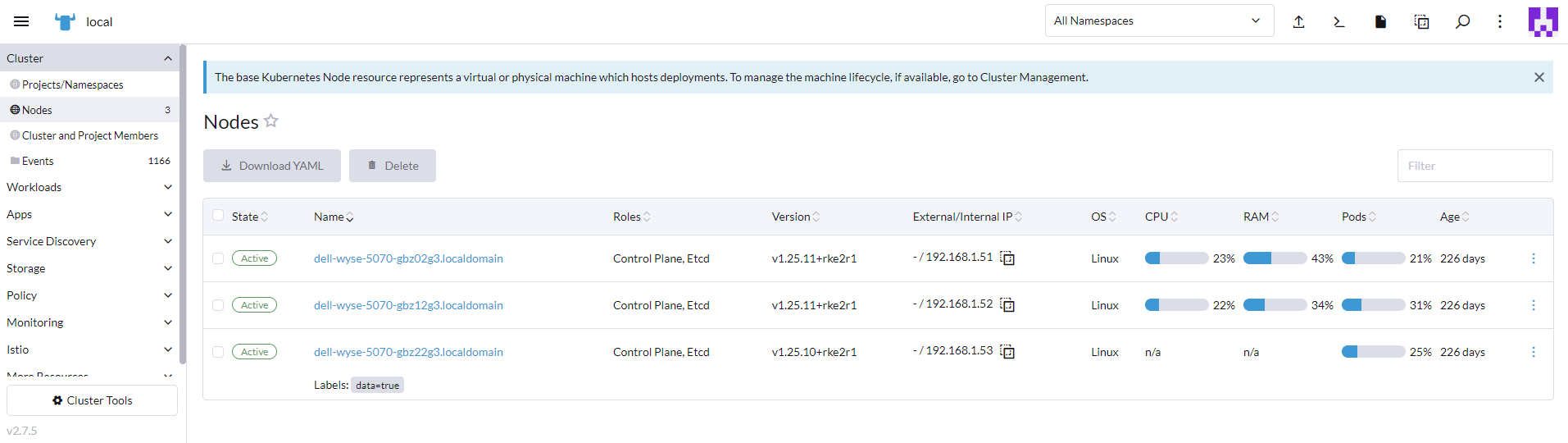

root@dell-wyse-5070-gbz02g3:~$ kubectl get no -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
dell-wyse-5070-gbz02g3.localdomain Ready control-plane,etcd,master 226d v1.25.11+rke2r1 192.168.1.51 Ubuntu 22.04.2 LTS 5.15.0-75-generic containerd://1.7.1-k3s1
dell-wyse-5070-gbz12g3.localdomain Ready control-plane,etcd,master 226d v1.25.11+rke2r1 192.168.1.52 Ubuntu 22.04.2 LTS 5.15.0-75-generic containerd://1.7.1-k3s1
dell-wyse-5070-gbz22g3.localdomain Ready control-plane,etcd,master 226d v1.25.11+rke2r1 192.168.1.53 Ubuntu 22.04.2 LTS 5.15.0-75-generic containerd://1.7.1-k3s1
root@dell-wyse-5070-gbz02g3:~$
